Product introduction
Oriented to the customer market, our company successfully developed and manufactured warehouse stacker, which can effectively ensure the safety of operators, reduce manpower allocation and save warehouse space. Warehouse stacker has strong applicabil
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Three systems:
(1)Crane system: positioning system, anti-swing system, HMI of human-machine interaction, remote control of crane, setting of wireless network, background server and crane body control, etc.
(2)Warehouse management system: WCS management and WMS management, code scanning device, warehouse management system software, video monitoring system, wireless and wired network system, production docking MES interface.
(3)Safety and warning system of the warehouse: safety management of the working area of the crane, ground sidewalk and vehicle passage and indicator lights, alarms and safety barriers of these safety managements.
Save power and improve efficiency:

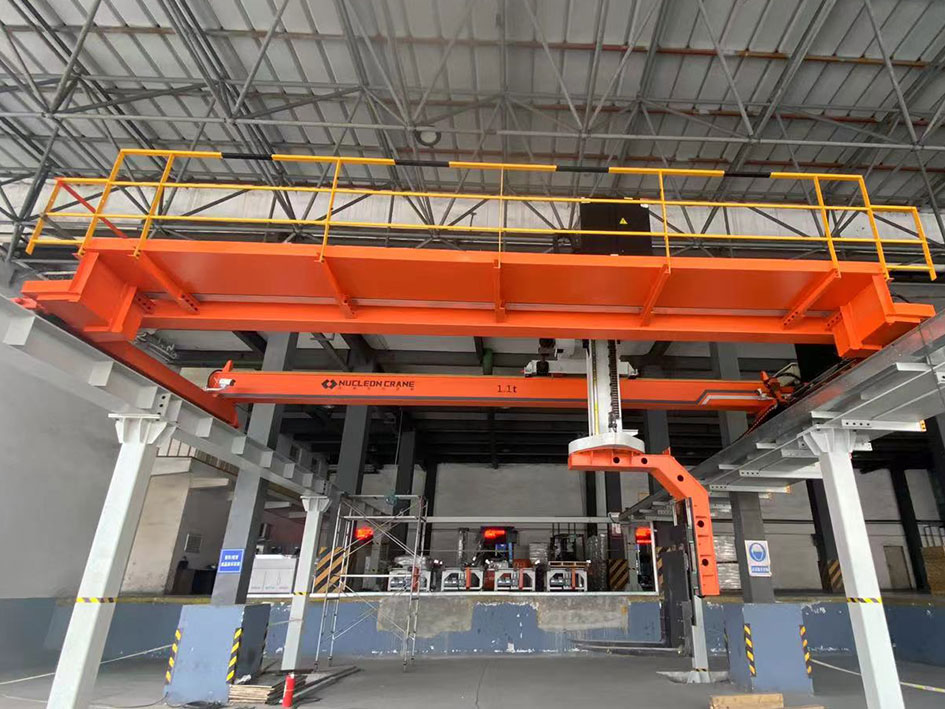

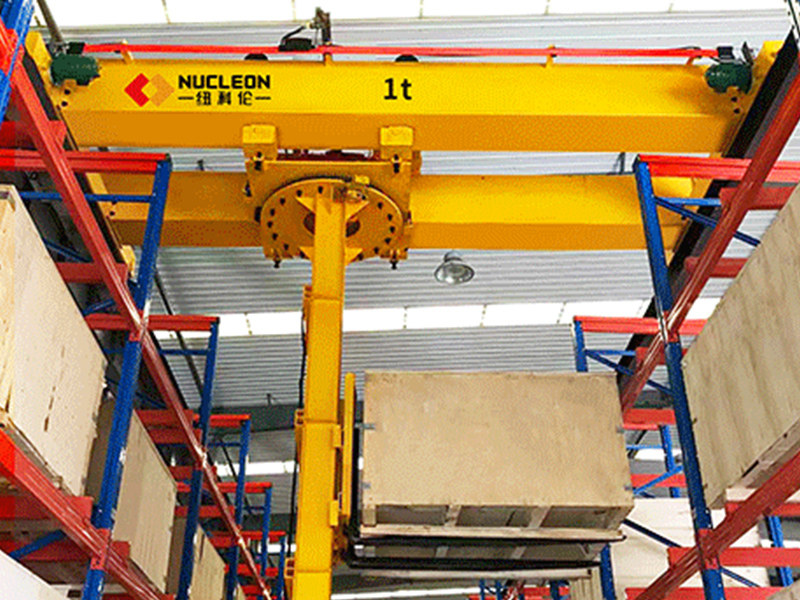

(1)The hanging stacker is mainly used together with the rack. It is convenient to move in the process of use, which can save power and save the occupied area of the stacker.

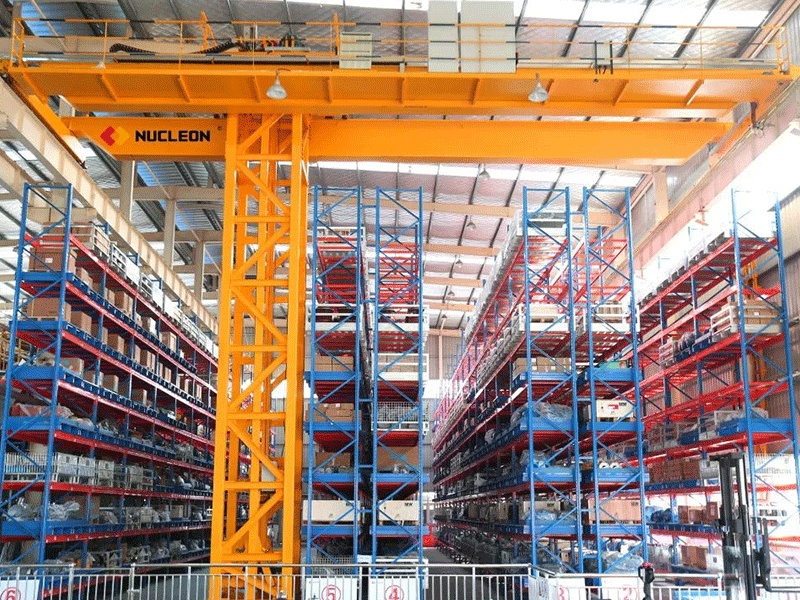

The automatic stereoscopic warehouse stacker brings great convenience to the logistics transportation industry and the large-scale storage industry. The stacker can not only improve the efficiency, but also reduce the damage rate of materials. What’s more, the stacker can protect the surface of material to the maximum extent during the working process.
Performance Parameters:
Lifting capacity: 3t~16t
Span: 10m~40m
Lifting height: 6m~12m
Lifting speed: 1.5m/min~15m/min
Running speed: 30m/min-60m/min
Work level: A5~A6
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
