Product introduction
Material suction and discharge crane for baking is a special crane for the baking of anode carbon block used in aluminium electrolysis in the carbon industry. It integrates the functions of carbon block transfer and loading, filling material suction
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:

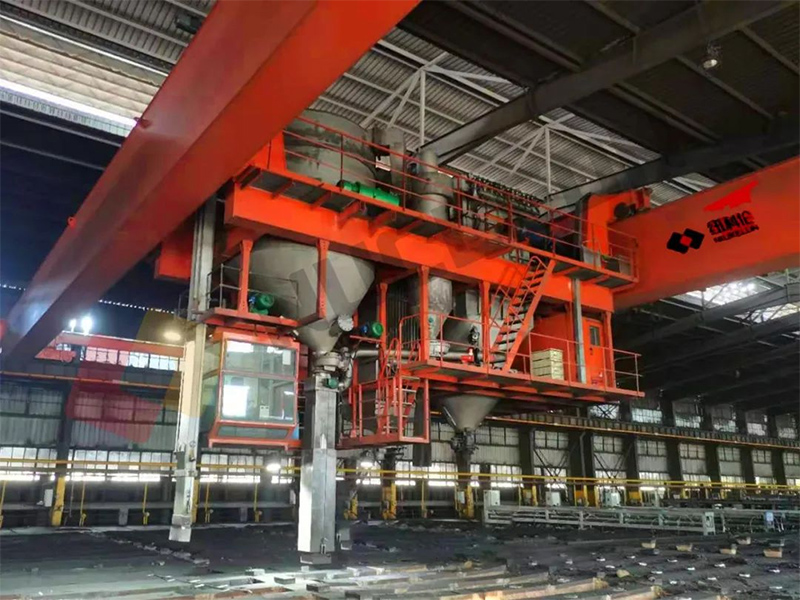

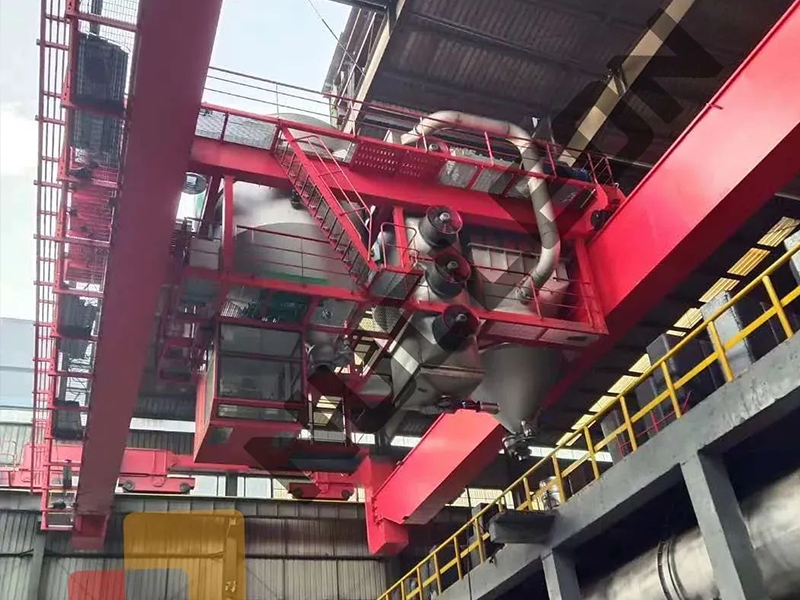

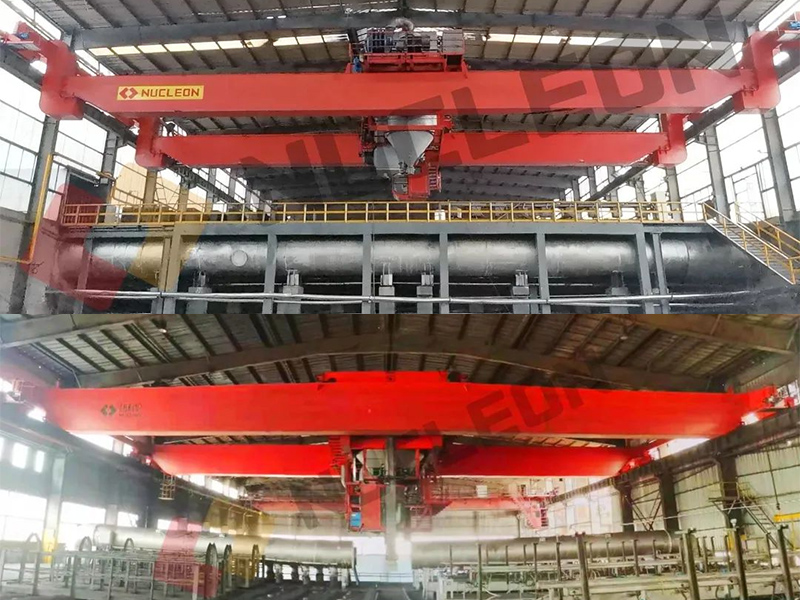

Material suction and discharge crane for baking mainly includes crane bridge, crab, dust handling system for material suction and discharge, anode transfer mechanism (optional), traveling mechanism of trolley and electric control system. Work level of the crane is A6-A8, speed of the suction and discharge is 40-80 m3/h and the dust emission concentration is ≤10mg/N m3. Variable frequency speed regulation is adopted for crane operation, lifting and lowering of the material pipe and fixture and the whole vehicle PLC system is intelligently controlled.
Product Functions:
(1)Loading: Load the unburned anode block (green block) into the baking furnace pit.
(2)Filling: Fill the granular coke in the material box into the space between the baking furnace and the anode block and cover the top.
(3)Suction: Suck the filled material in the furnace into the bin.
(4)Discharge: Take out the baked anode block (baked block) from the baking furnace and send it to the conveyor belt or the designated place.
(5)Other auxiliary lifting operations: The crabs are equipped with auxiliary suction pipes to clean the flue and remove dust. The bridge is equipped with 10t electric hoist to carry the burner and maintain the baking furnace.
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
