Product introduction

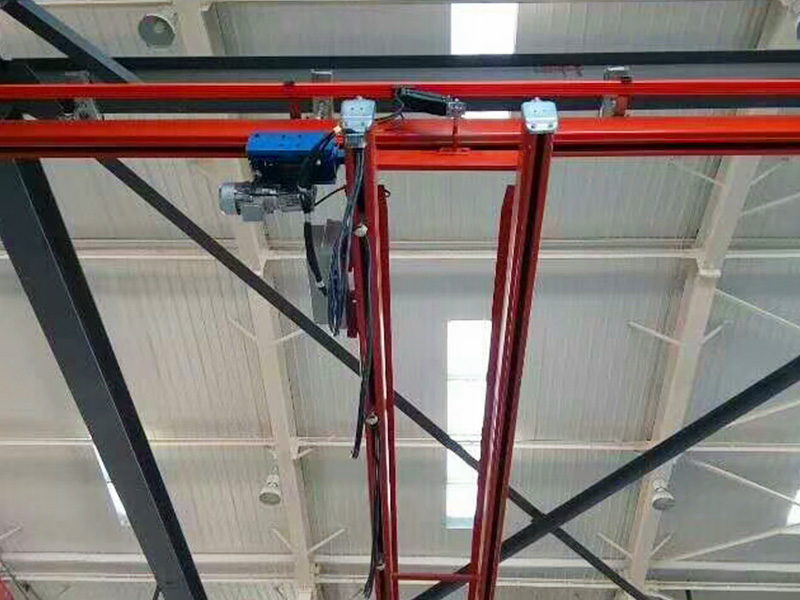

Flexible double-beam crane is the Nucleon-developed light track product with chain electric hoist as hoisting mechanism, which has the advantages of stable running, convenient operation, low noise and environmental protection. It is suitable for the
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Flexible double-beam crane adopts lightweight, modular and customized design. Hoisting mechanism uses NL mode chain electric hoist with superior performance and advanced technology. Traveling mechanism of trolley and crab is set as manual drive or three-in-one drive according to the lifting capacity. Tracks of the trolley and crab use rigid or flexible track, which can be suspended in the air or on the self-supporting steel structure column according to the actual situation of the site.
Product Features:
(1)Compact structure and small limit of size.
(2)Variable frequency speed regulation and stable operation.
(3)Smooth running and convenient operation.
(4)Silent drive, low noise and environmental protection.
Performance Parameters:
Lifting capacity: 0.25t~3.2t
Span: 3m~20m
Lifting height: 3m~10m
Work level: A3~A5
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
