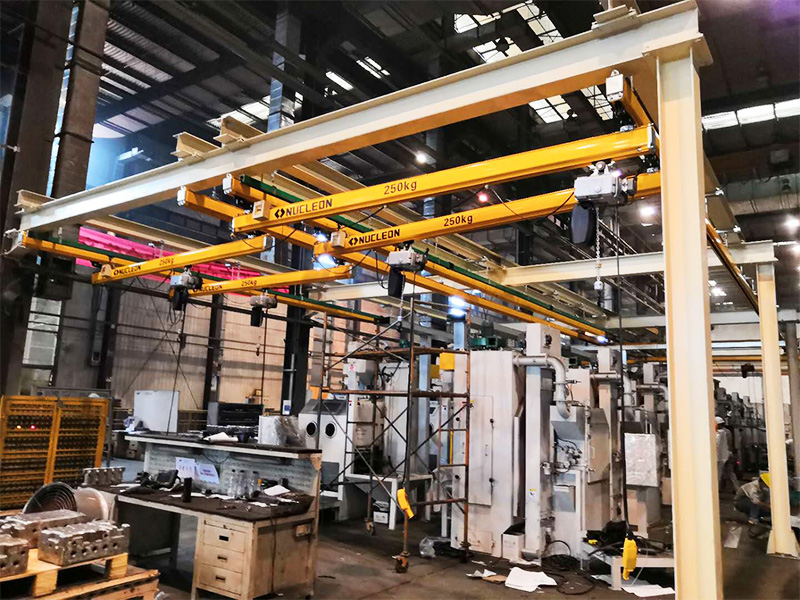

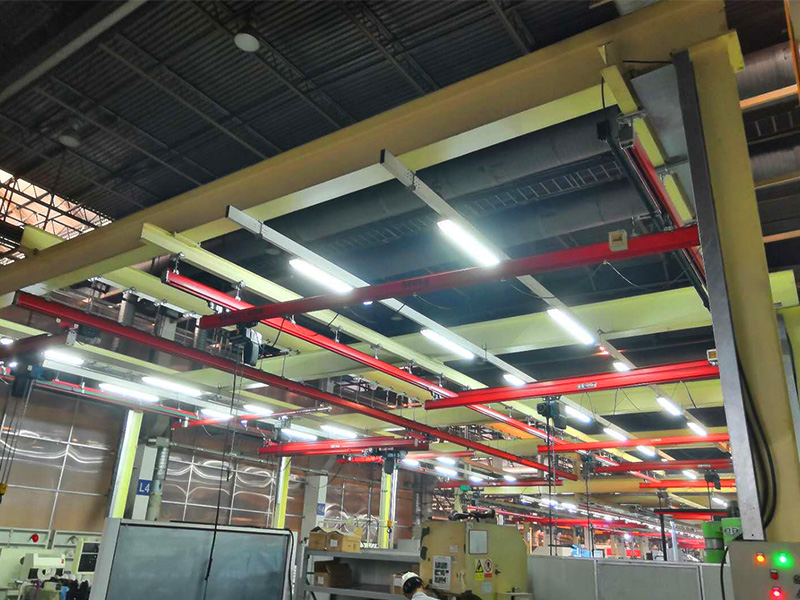

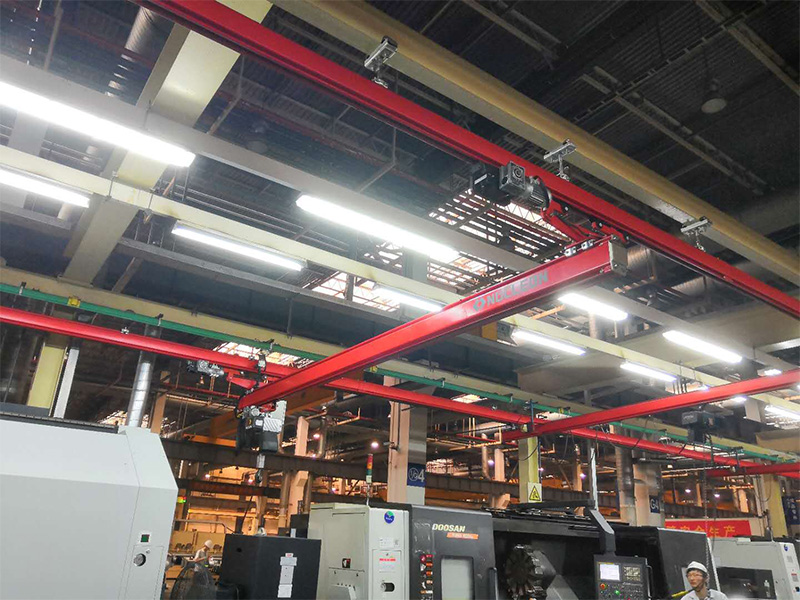

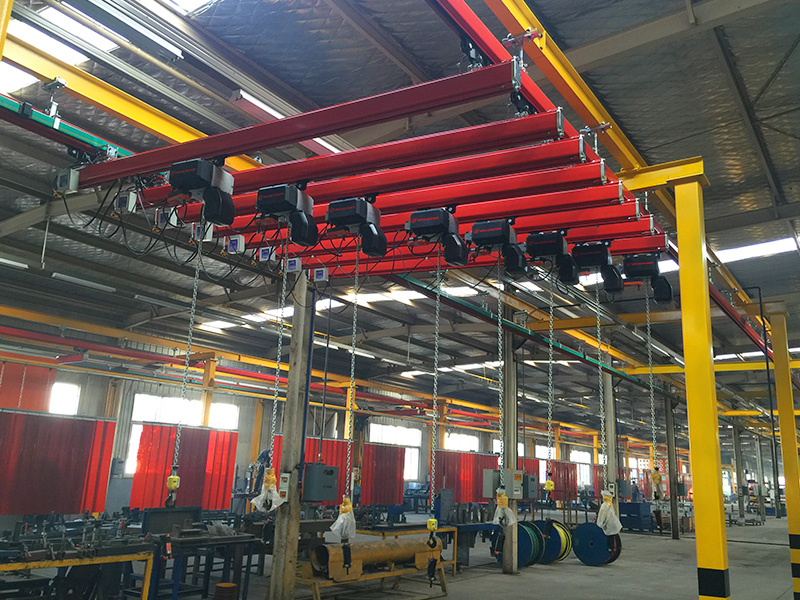

Free-standing flexible combined crane

Product introduction

Free-standing flexible combined crane is the Nucleon-developed light track product with chain electric hoist as hoisting mechanism, which has the advantages of stable running, convenient operation and low noise and environmental protection. It is app

  • Independent design

  • Modular design

  • Intelligent

  • Compact design

  • environment protection

  • Safety design

Product Details:

Free-standing flexible combined crane adopts lightweight, modular and customized design. Hoisting mechanism uses NL mode chain electric hoist with superior performance and advanced technology. The traveling mechanism of the trolley and crab is set as manual drive or three-in-one drive according to the lifting capacity. Rigid or flexible tracks are adopted for the trolley and crab tracks, which can be suspended in the air or free-standing steel structure columns according to the actual situation of the site.

Product Features:

(1)Compact structure and small limit of size.

(2)Variable frequency speed regulation and stable operation.

(3)Complete, safe and reliable protection device.

(4)Integrated transmission, energy-saving and high efficiency.

(5)Silent drive, low noise and environmental protection.

Performance Parameters:

Lifting capacity: 0.25t~3.2t

Span: 3m~20m

Lifting height: 3m~10m

Work level: A3~A5


Intelligent functions—— Nucleon is a supplier of complete solutions for new Chinese cranes and material transportation
Core Technologies—— Nucleon is a supplier of complete solutions for new Chinese cranes and material transportation
Practical Cases—— Nucleon is a supplier of complete solutions for new Chinese cranes and material transportation
