Product introduction

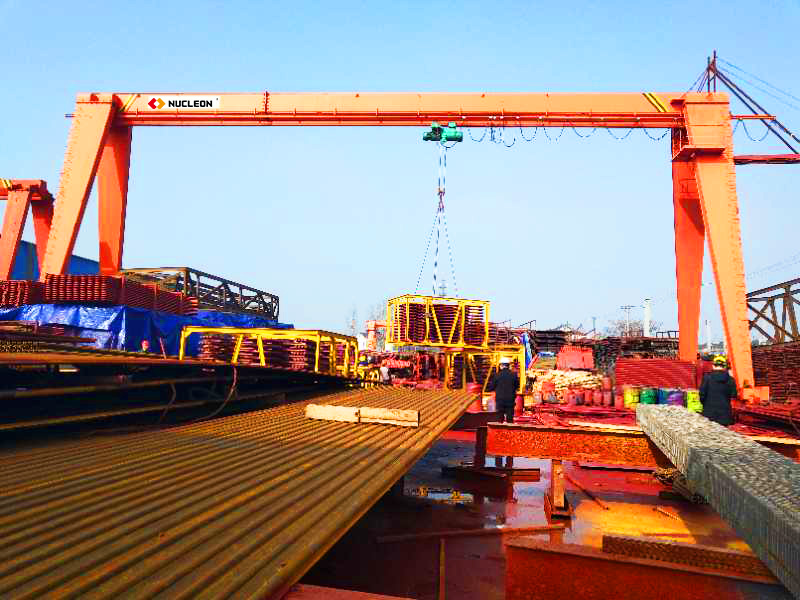

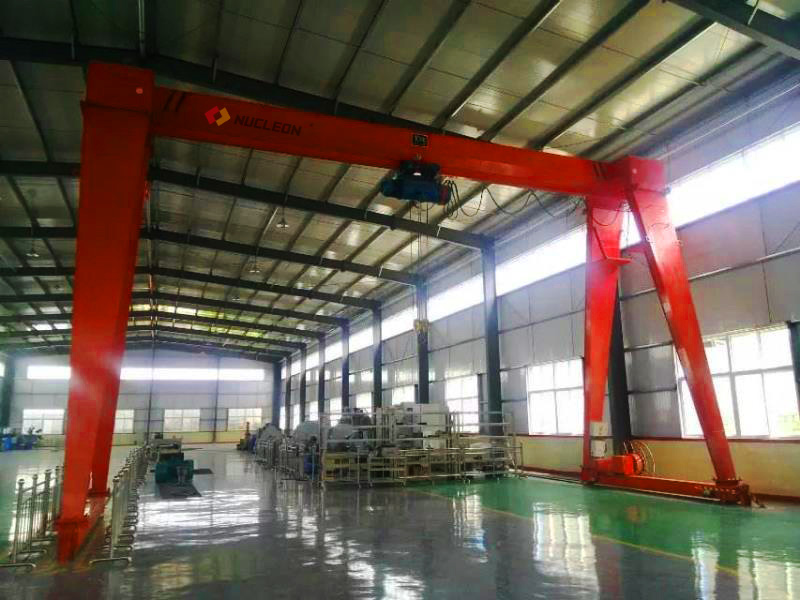

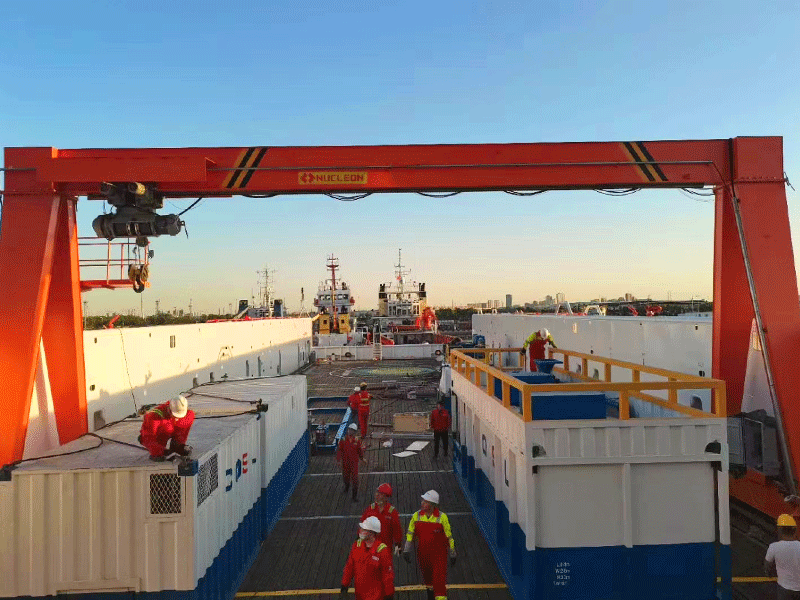

The general-purpose hoist gantry crane is a hoist gantry crane product developed by our company with the general-purpose wire rope electric hoist as the lifting mechanism. It is robust, safe and reliable, widely used and easy to install. It is suitab
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Hoisting mechanism of the universal hoist gantry crane adopts modular and parametric design. The hoisting mechanism adopts a general rope electric hoist with stable performance, durability, safety and reliability. The traveling mechanism of the trolley is driven by vertical speed change or three-in-one drive device, and the common speed control system is used for control.
According to the jib type, the crane can be divided into non-jib, single-jib and double-jib; According to the structural form of steel structure, it can be divided into box type, truss type and upper box and lower frame type; According to the operation mode, it can be divided into ground operation, air operation and remote control operation.
Product Features:
(1)Stable performance.
(2)Durability.
(3)Safety and reliability.
(4)Convenient installation.
(5)Wide application.
Performance Parameters:
Lifting capacity: 1t~32t
Span: 3m~40m
Lifting height: 6m~45m
Work level: A4
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
